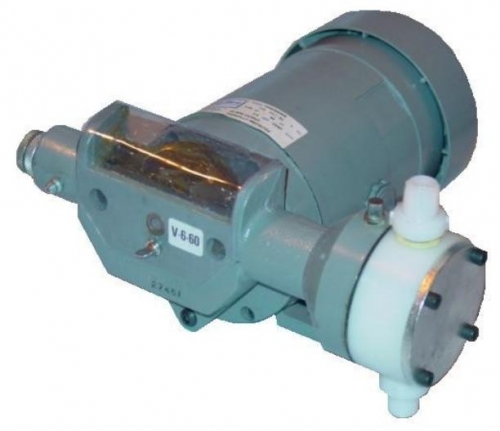

A & F MACHINE PRODUCTS CO. HELWIG V-6 MINI PUMP
CONTACT US FOR A CUSTOM QUOTATION ON THESE PRODUCTS.
FREE UPS GOUND SHIPPING TO THE LOWER 48 STATES OF THE USA ON ALL ORDERS OVER $100.00.
Click here, if you were looking for the A & F Machine Products Co. Helwig V-7 Mini Piston Pump.
FEATURES:
- Drive, 1/20 Horsepower, 120 VAC, 60 HZ, Totally Enclosed Fan-Cooled Motor with 6' 3-wire US Plug
- Wet End, Cast Iron Body, Polyethylene Pump Head,Teflon Diaphragm, Cedramic Valve Balls, Viton Valve Seats, Polyethylene Check Valve Assemblies with 3/8" OD Tubing Connections
- Optional Wet Ends, Replace Polyethylene Pump Head with either 303 or 316 Pump Heads
- Includes, Polyethylene Foot Valve, Polyethylene Injection Nozzle Assembly, 5' Foot Suction Tubing, 5' Foot Discharge Tubing, Wall Mounted Bracket, and Instruction Manual
- Output Rated at 100 PSIG (6.89 BAR)
GENERAL INFORMATION: The V-6 diaphragm pump is an A&F Machine Products Pump that is designed for lighter metering applications. It is a compact unit. The stroke is fully adjustable and marked in 5 increments between 0-100%. The 20% stroke length is the recommended minimum stroke length. Specific outputs for each available model are listed below.
FULL STROKE OUTPUT:
STROKE CODE | ML/MIN | GPH | GPD | STROKE RATE |
---|---|---|---|---|
2 | 2.5 | 0.04 | 1 | TWO STROKES PER MINUTE |
6 | 8 | 0.12 | 3 | SIX STROKES PER MINUTE |
12 | 15 | 0.25 | 6 | TWELVE STROKES PER MINUTE |
30 | 63 | 1 | 24 | THIRTY STROKES PER MINUTE |
60 | 126 | 2 | 48 | SIXTY STROKES PER MINUTE |
WET END:
BLANK | POLYETHYLENE |
SS | 303 STAINLESS STEEL |
S6 | 316 STAINLESS STEEL |
Model V-6 Diaphragm Pumps that you can build and buy from this page are:
- V-6-2
- V-6-2-SS
- V-6-2-S6
- V-6-6
- V-6-6-SS
- V-6-6-S6
- V-6-12
- V-6-12-SS
- V-6-12-S6
- V-6-30
- V-6-30-SS
- V-6-30-S6
- V-6-60
- V-6-60-SS
- V-6-60-S6
