V-6 Mini Pump Parts
SKU: AFM-6MINI-PARTS
Price:
Add to cart to see price
*Note: This product is not eligible for rewards points earning.
*Note: This product cannot be redeemed using rewards points.
*Note: This product cannot be redeemed using rewards points.
FOR CURRENT DISCOUNTS, SEE TERMS OF SALE TAB (LEFT).
With few exceptions, you get free shipping on orders over $100.00, lower 48 States of the USA.
We accept Visa, MasterCard, American Express, Discover, and PayPal.

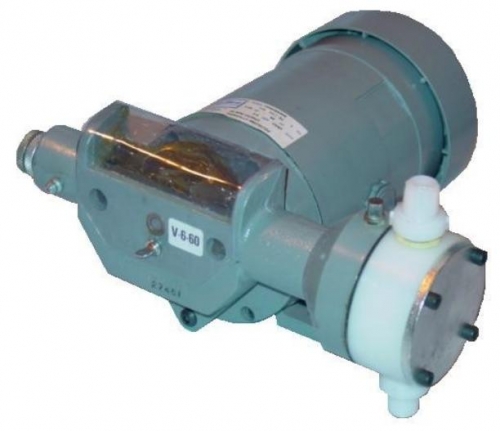

A & F MACHINE PRODUCTS CO. V-6 MINI PUMP PARTS
CONTACT US FOR A CUSTOM QUOTATION ON THESE PRODUCTS.
FREE UPS GOUND SHIPPING TO THE LOWER 48 STATES OF THE USA ON ALL ORDERS OVER $100.00.
Click Here to buy a new V-6 Mini Diaphram Pump at a discounted price.
To view, download, or print a blow up pump diagram showing all of the V-6 parts click here.
Model V-6 Diaphram Pump Parts that you can buy from this page are:
| ITEM | PART # | DESCRIPTION |
|---|---|---|
| 1 | VW-2 | 120 VAC 1PH 1/20TH HP 2 RPM GEAR MOTOR |
| VW-6 | 120 VAC 1PH 1/20TH HP 6 RPM GEAR MOTOR | |
| VW-12 | 120 VAC 1PH 1/20TH HP 12 RPM GEAR MOTOR | |
| VW-30 | 120 VAC 1PH 1/20TH HP 30 RPM GEAR MOTOR | |
| VW-60 | 120 VAC 1PH 1/20TH HP 2 RPM GEAR MOTOR | |
| 1A | 6K151 | REPLACEMENT VW MOTOR (SPECIFY GEAR HEAD RPM) |
| 1C | 1C-2 | 2 RPM VW GEAR HEAD ASSEMBLY |
| 1C-6 | 6 RPM VW GEAR HEAD ASSEMBLY | |
| 1C-12 | 12 RPM VW GEAR HEAD ASSEMBLY | |
| 1C-30 | 30 RPM VW GEAR HEAD ASSEMBLY | |
| 1C-60 | 60 RPM VW GEAR HEAD ASSEMBLY | |
| 2 | 097 | SLIDE ARM ASSEMBLY |
| 3 | 08 | V-6 PUMP CASTING |
| 3A | 006-2 | SLIDE GREASE FITTING |
| 4* | 02DH | POLYETHYLENE DISCHARGE CHECK VALVE ASSEMBLY |
| 02D-S | 303SS DISCHARGE CHECK VALVE ASSEMBLY | |
| 5* | 02SH | POLYETHYLENE SUCTION CHECK VALVE ASSEMBLY |
| 02S-S | 303SS SUCTION CHECK VALVE ASSEMBLY | |
| 6 | 1025 | POLYETHYLENE PUMP HEAD ASSEMBLY W/CHECKS |
| 1025 SS | 303SS PUMP HEAD ASSEMBLY W/CHECKS | |
| 7 | 102 | PLASTIC COVER |
| 102 GC | SS GASKETED COVER | |
| 7A | 1102-1 | COVER SCREW |
| 8 | 8 | POLYETHYLENE INJECTION NOZZLE |
| 9 | 9 | POLYETHYLENE FOOT VALVE |
| 10 | 08-4 | 1/4-20 BUTTON HEAD SCREW (3 REQUIRED) |
| A | 090 | SLIDE |
| B | 098 | SLIDE PIN |
| C | 099 | STROKE ADJUSTMENT SCREW & LOCKNUT |
| D | 3L06 | DRIVE BEARING |
| E | 101-1 | 1/8" X 1" ROLLED PIN |
| F | 101 | DRIVE BEARING SUPPORT CAM |
| G | 312 | OILITE SUPPORT BUSHING |
| H | 500 | OILITE PISTON BUSHING |
| I | 0006-2 | 1/8" NPT OIL RESERVOIR PIPE PLUG |
| J | 07 | V-6 HARDENED STEEL PISTON |
| K | 12 | V-6 PACKING SET |
| L | 13 | PACKING RETAINER WASHER |
| O | 16 | SNAP RING |
| P | 30 | V-6 DIAPHRAGM SCREEN |
| Q* | 26 | TEFLON DIAPHRAGM |
| R | 25 | POLYETHYLENE HEAD |
| 25 SS | 303SS HEAD | |
| 25 S6 | 316SS HEAD | |
| S | 29 | CLAMP PLATE FOR POLYETHYLENE HEAD |
| T | 27 | PUMP HEAD BOLT (4 REQUIRED) |
| U | 02 | POLYETHYLENE CHECK VALVE BODY |
| V | 02-8 | BALL CHECK RETAINING PIN |
| W | 28 | VITON "O" RING SEAT |
| X | 002-9 | 3/8" DIAMETER CERAMIC BALL CHECK |
| Z | 50-9 | 3/8" NPT X 3/8" OD POLY TUBING FITTING |
| 50-9 SS | 3/8" NPT X 3/8" OD 316SS TUBING FITTING | |
| Z1 | Z1 | MINI-PUMP WALL BRACKET |
* RECOMMENDED SPARE PARTS
Prices for the Continental 48 states of the USA only.
