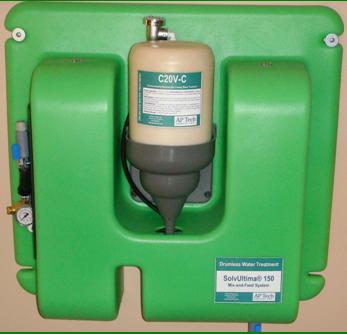

Solv-Ultima™ 150: No Power Required
Drumless water treatment without electricity. This unit uses a system of float-weights and mechanical solenoid valves to automatically reconstitute solid chemical concentrates on-site.
Contact us.for a price on Currently Available Solid Feeders.
Operation
When the level of mixed chemical in the reservoir drops, (due to chemical pump draw), the primary float-weight activates the primary solenoid valve allowing water to spray up into the bottle of chemical. Water sprays up & erodes, dissolves, & mixes solid chemical concentrate which gravity-drains into the self-contained reservoir/housing, until the primary float reaches the shut-off height & closes the solenoid. This fill, empty, & refill cycle will continue automatically, based on system demand. The second float-weight & solenoid is a safety (built-in spill containment).
Use Solid Concentrate chemicals with this product.
To view or download a PDF product bulletin, Click Here.
If you are in doubt regarding which dissolving system best meet your needs, Click Here to view or download our selection chart.
Solid form treatment
- Reconstitute on site
- 1-gallon plastic bottles
- Complete product line
- Disposal- throw in trash
- No drums to handle
- No chemical exposure
Mixing Bowl
- Molded mixing bowl
- Spray safety deactivation tab
- Spray nozzle (exposed)
- Product retention screen
Operational Components
- Float weight (1 of 2)
- Water supply to solenoids
- Float-weight harness (1 of 2)
- S-hook connectors
- Mechanical solenoid (1 of 2)
Liquid-End Connections & Fittings
- Make-up line/water supply to board
- Isolation valve for water supply
- In-line Y-strainer/filter
- Pressure guage
- Pressure regulator (adjustable)
- Isolation valve (chemical supply)
- Suction tube & fitting (to pump)
