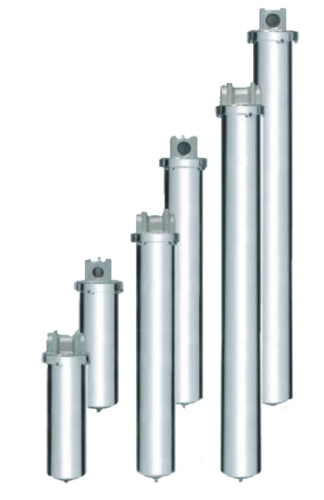

THE QUANTROL SINGLE CARTRIDGE FILTER HOUSINGS. All are made in the USA.

THESE CARTRIDGES ARE ALL 2 & 1/2" IN DIAMETER AND INTENDED FOR SIDE STREAM FILTRATION IN RECIRCULATING WATER SYSTEMS.

CONTACT US FOR PRICE QUOTATION CLICK ONLY THESE TWO MODEL NUMBERS ARE SET UP FOR FOR DIRECT PURCHASE: QFP1X10-3/4 AND QFP1X20-34. ASK US FOR A PDF QUOTATION ON THE QFP1X10-1 AND THE QFP1X20-1 MODELS.

QFP1X Series Housings are designed for demanding industrial and commercial applications. Heavy duty 316L stainless steel construction provides maximum durability and corrosion resistance. Ring nut closure allows for easy access and quick cartridge change outs.

Features:

• Heavy Duty Cast Head with Mounting Bracket
• Spring-loaded Knife Edge Bottom Cup Provides a Positive Seal
• Buna O-Ring Seal
• For Use with Double Open-End Filter Cartridges
• 1/4” Bottom Drain with Plug
• Max Cartridge Diameter: 2 3/4”
• Max Pressure: 300 psi
• Max Temp: 200°F


Model # Material Cartridge
Type
Cartridge
Length
Inlet/
Outlet
GPM -
Depth
Cartridge
GPM -
Pleated
Cartridge
QFP1X10-3/4 316L SS DOE 9 3/4” - 10” 3/4” FNPT 5 7
QFP1X20-3/4 316L SS DOE 19 1/2” - 20” 3/4” FNPT 10 14
QFP1X20-1.0 316L SS DOE 19 1/2” - 20” 1.0” FNPT 10 14
QFP1X30-1.0 316L SS DOE 29 1/2” - 30” 1.0” FNPT 15 21

 NOTE: Flow rates are guidelines only. Actual flow rates vary based on micron rating, cartridge type, solids loading and other factors.

Prices for the Continental 48 states of the USA only.

GPM -
Pleated
Cartridge
THESE CARTRIDGES ARE ALL 2 & 1/2" IN DIAMETER AND INTENDED FOR SIDE STREAM FILTRATION IN RECIRCULATING WATER SYSTEMS.
