Quantrol Bag Filter Housing QFPBH2-304 Only
FOR CURRENT DISCOUNTS, SEE TERMS OF SALE TAB (LEFT).
With few exceptions, you get free shipping on orders over $100.00, lower 48 States of the USA.
We accept Visa, MasterCard, American Express, Discover, and PayPal.
To Get Members Only Benefits, Click "Save Time On Your Next Visit" at Check Out.
Instant message me with your questions.
THE QUANTROL SIZE #2 BAG HOUSING QFPBH2-304 (ONLY). All are made in the USA.
WE KNOW THERE ARE TWO PAGES FOR THE QFPBH2-304 HOUSING. USE THIS PAGE FOR HOUSING ONLY.
This system is recommended for industrial filtration of water-like fluids and oils only and is not intended for potable or drinking water.
CONTACT US FOR PRICE QUOTATION, IF DIRECT PURCHASE IS INACTIVE, OR IF YOU WANT SOMETHING CUSTOM.
QFP Series Bag Filter Housings offer an economical solution to your commercial and industrial bag filtration applications. These heavy-duty housings are designed for maximum durability. The swing bolt closure with eye hooks allows for quick and easy bag change outs. Housings are available for size #1 or #2 Filter Bags in your choice of 304LSS, 316L SS, or carbon steel.

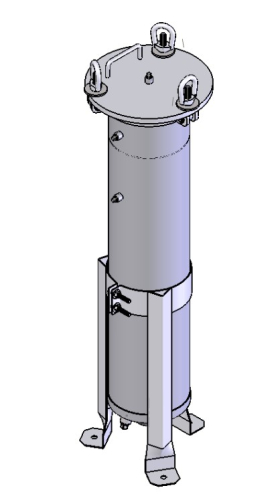

The Quantrol Size #2 Bag Housing Model Number QFPBH2-304 uses a single bag.
Features:
• Swing Bolt Closure

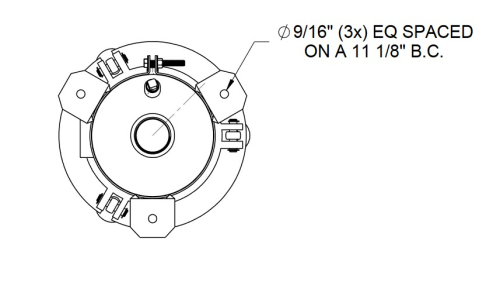

• Adjustable Stainless Steel Leg Assembly

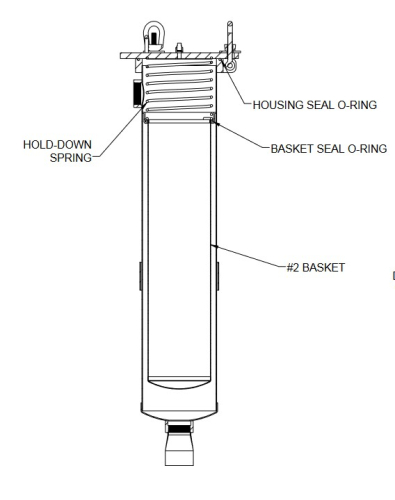

• SS Support Basket(s) with 1/8” Perforations
• Buna N Gasket
• 1/4” Vent and Gauge Ports
• Drain Port

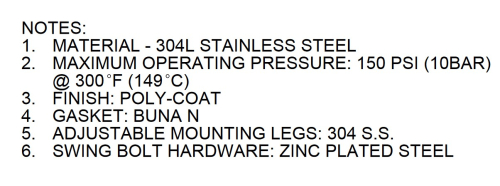

• Housings rated at 150 psi, 300°F
• Manufactured in the USA
THE QFPBH2-304 IS OUR MOST POPULAR BAG FILTER MODEL. TO SEE OTHER BAG FILTER HOUSING THAT WE OFFER, CLICK HERE.
Bag Filter Housing:

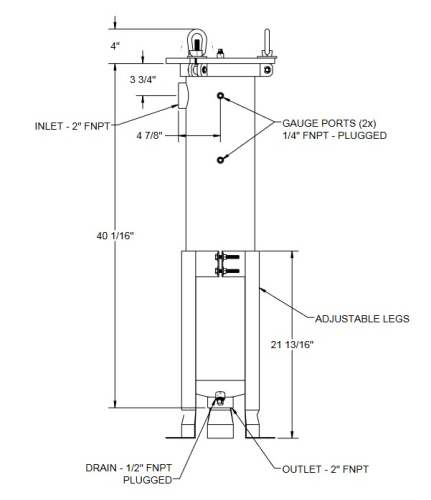

- QFPBH2-304 - Described as Bag Housing SB #2 304 SS 2" FNPT, 120 GPM, 150 PSI, 300°F
Filter Service Kit (Sold Separately):
Click here to Buy the FSK-1/4.
- FSK-1/4 - Filter Service Kit for QFPBH Series Bag Filter Housings. Includes: Pressure Gauges, Drain Valves, Air Purge/Pressure Relief & Installation Fittings - CLICK HERE for more on the FSK-1/4 Filter Service Kit or to purchase it.
Size #2 Filter Bags - Sold 50 Per Case in Case Quantity Only. Pricing is CASE Pricing (Sold Separately).
Click here to Buy the Filter Bags for the QFPBH2-304 Filter Housing.
Options under Size #2 Filter Bags;
- PE1P2SH, SZ. #2, 1 MIC. POLYESTER BAG, CARBON STEEL RING W/ HANDLE, 50/CS
- PE5P2SH, SZ. #2, 5 MIC. POLYESTER BAG, CARBON STEEL RING W/ HANDLE, 50/CS
- PE10P2SH, SZ. #2, 10 MIC. POLYESTER BAG, CARBON STEEL RING W/ HANDLE, 50/CS
- PE25P2SH, SZ. #2, 25 MIC. POLYESTER BAG, CARBON STEEL RING W/ HANDLE, 50/CS
- PE50P2SH, SZ. #2, 50 MIC. POLYESTER BAG, CARBON STEEL RING W/ HANDLE, 50/CS
- PE100P2SH, SZ. #2, 100 MIC. POLYESTER BAG, CARBON STEEL RING W/ HANDLE, 50/CS
- PE200P2SH, SZ. #2, 200 MIC. POLYESTER BAG, CARBON STEEL RING W/ HANDLE, 50/CS
Tip: When I used to work in the field, I would always put a magnetic business card into the bag in one of my installations. That is very helpful in removing magnetic Ferrous Oxide that can flow through the larger porosity filter bags.
Prices for the Continental 48 states of the USA only.
