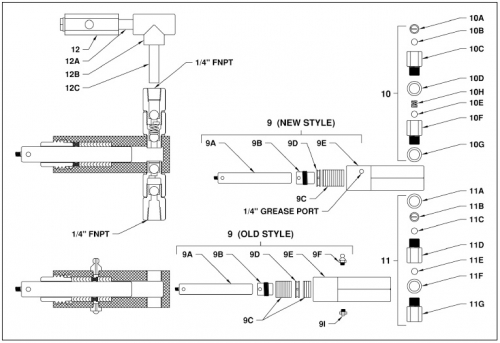

A & F MACHINE PRODUCTS CO. 1/4 INCH THRU 5/8 INCH PISTON HEAD PARTS
CONTACT US FOR A CUSTOM QUOTATION ON THESE PRODUCTS.
FREE UPS GOUND SHIPPING TO THE LOWER 48 STATES OF THE USA ON ALL ORDERS OVER $100.00.
The 1/4 Inch THRU 5/8 Inch Piston Head Parts that you can buy from this page are:
| ITEM | PART # | DESCRIPTION |
|---|---|---|
| 9 | 1000-5 | 5/8" CS PISTON HEAD ASSEMBLY** |
| 1000-4 | 1/2" CS PISTON HEAD ASSEMBLY** | |
| 1000-3 | 3/8" CS PISTON HEAD ASSEMBLY** | |
| 1000-2 | 1/4" CS PISTON HEAD ASSEMBLY** | |
| 9A | 007-4 | 5/8" DIAMETER 303SS PISTON*** |
| 007-3 | 1/2" DIAMETER 303SS PISTON*** | |
| 007-2 | 3/8" DIAMETER 303SS PISTON*** | |
| 007-1 | 1/4" DIAMETER 303SS PISTON*** | |
| 9B | 003-6 | 5/8" & 1/2" PACKING NUT |
| 003-2 | 3/8" & 1/4" PACKING NUT | |
| 9C* | 012-4 | 5/8" PACKING SET (BUNA N) |
| 012-3 | 1/2" PACKING SET (BUNA N) | |
| 012-2 | 3/8" PACKING SET (BUNA N) | |
| 012-1 | 1/4" PACKING SET (BUNA N) | |
| 9D | 017-4 | 5/8" & 1/2" PACKING GLAND |
| 017-1 | 3/8" & 1/4" PACKING GLAND | |
| 9E | 001-6 | 5/8" & 1/2" CS PUMP HEAD SHELL** |
| 001-2 | 3/8" & 1/4" CS PUMP HEAD SHELL** | |
| 9F | 006-1 | GREASE FITTING (OLD STYLE HEADS) |
| 9I | 006 | GREASE RELIEF FITTING (OLD STYLE HEADS) |
| 10 | 002-D | 303SS DISCHARGE CHECK VALVE ASSEMBLY*** |
| 10A | 002-7 | BALL RETAINER CLIP |
| 10B | 002-5 | 3/8" DIAMETER 316SS BALL CHECK |
| 10C | 002-3 | TOP DISCHARGE CHECK BODY |
| 10D | 002-6 | NICKEL PLATED COPPER SEAL |
| 10E | 002-5 | 3/8" DIAMETER 316SS BALL CHECK |
| 10F | 002-2 | BOTTOM DISCHARGE CHECK BODY |
| 10G | 002-6 | NICKEL PLATED COPPER SEAL |
| 10H | 002-0 | ANTI-SIPHON SPRING (OPTIONAL) ALLOY 276 |
| 11 | 002-S | 303SS SUCTION CHECK VALVE ASSEMBLY*** |
| 11A | 002-6 | NICKEL PLATED COPPER SEAL |
| 11B | 002-7 | BALL RETAINER CLIP |
| 11C | 002-5 | 3/8" DIAMETER 316SS BALL CHECK |
| 11D | 002-1 | TOP SUCTION CHECK BODY |
| 11E | 002-5 | 3/8" DIAMETER 316SS BALL CHECK |
| 11F | 002-6 | NICKEL PLATED COPPER SEAL |
| 11G | 002-4 | BOTTOM SUCTION CHECK BODY |
| 12 | 18 | 1/4" NPT 303SS PRESSURE RELIEF VALVE |
| 12A | 1/4" NPT X 1 1/2" BLACK NIPPLE | |
| 12B | 1/4" NPT 300# BLACK TEE | |
| 12C | 1/4" NPT X 2 1/2" BLACK NIPPLE |
CS-CARBON STEEL
* OPTIONAL PACKING MATERIALS, VITON (-V) AND TEFLON (-T)
OPTIONAL MATERIALS
** 303SS ADD $160 LIST
316SS ADD $280 LIST
C20 ADD $600 LIST C20 IS ALLOY 20
HC ADD $1350 LIST HC-ALLOY 276
*** 316SS ADD $60 LIST
C20 ADD $120 LIST
HC ADD $220 LIST
OLD STYLE HEADS HAD A GREASE FITTING AND GREASE RELIEF FITTING. THE V-10 SERIES HEADS DO NOT HAVE GREASE FITTINGS. THE GREASE FITTING FOR LUBRICATING THE PISTON IS IN THE MAIN PUMP CASTING AND ALIGNS WITH A GREASE PORT IN THE NEW STYLE PUMP HEADS. UNLESS OLD STYLE IS SPECIFIED, ALL ORDERS WILL BE FILLED USING THE NEW STYLE PARTS.
