Injection Quills

SKU: EP0-QUILL
Price:
Add to cart to see price

Type:
Spring Loaded:   Check Box for Spring
Text Area:
Qty: - +
   - OR -
*Note: This product is not eligible for rewards points earning.
*Note: This product cannot be redeemed using rewards points.

FOR CURRENT DISCOUNTS, SEE TERMS OF SALE TAB (LEFT).
With few exceptions, you get free shipping on orders over $100.00, lower 48 States of the USA.
We accept Visa, MasterCard, American Express and Discover
.
For PayPal Transactions we can email a Request for Funds
.
Purchase Orders will be accepted for Domestic US Companies with an approved Credit Application.

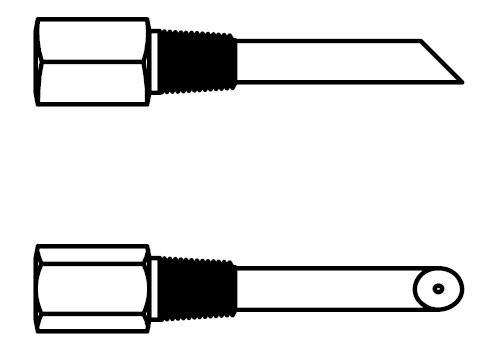

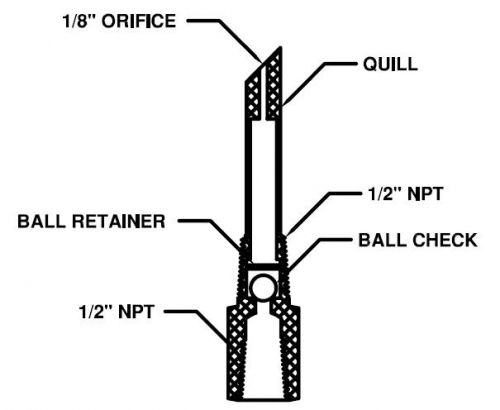

These are an assortment of Injection Quills.

THIS IS A LOW VOLUME SELLER, contact_us FOR A CUSTOM QUOTATION.

The Injection Quills on this page are:

  • 1/2" NPT 304SS 1000PSI 3" QUILL
  • 1/2" NPT 304SS 1000PSI 6" QUILL
  • 1/2" NPT 316SS 1000PSI 3" QUILL
  • 1/2" NPT 316SS 1000PSI 6" QUILL
  • 1/2" NPT ALLOY 20 1000PSI 3" QUILL
  • 1/2" NPT ALLOY 276 1000PSI 3" QUILL

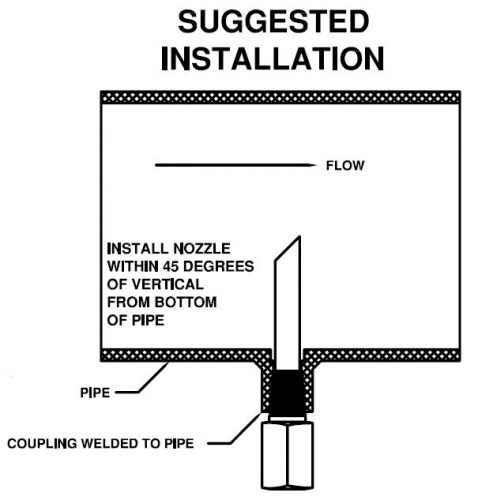

Injection quills are to inject chemicals into high pressure or high temperature applications like boiler water and steam lines.

The Specificationsw on 304 Stainless Steel are:

Fe Cr Ni Mn Si C P S
Remander 66.345-74.0% 18.0 -20.% 8.0 -10.5% 2.0% Max 1.0% Max 0.08% Max 0.045% Max 0.03% Max

The Specifications on 316 Stainless Steel are:

Fe Cr Ni Mo Mn Si C P S
62.0% 18.% Max 14.0 Max 3.0% Max 2.0% 1.0% 0.08% 0.045% 0.03%

Alloy 20 is also known as Carpenter 20 or simply Carp 20

Specifications on this metal are:

Fe Ni Cr Cu Mo Mn Si Nb C
Remander 31.0-44.0% 32.5 -35.0% 19.0 -21.0% 3.0 -4.0% 2.0% -3.0% 2.0% Max 1.0% Max 1.0% Max 0.06% Max

Alloy 276 is also known as Hastelloy C or Inconel® C-276.

Specifications on this metal are:

Ni Mo Cr Fe W Co Mn Si V P S C
Remander 15.0 -17.0% 14.5 -16.5% 4.0 -7.0% 3.0 -4.5% 2.5% Max 1.0% Max 0.8% Max 0.35% Max 0.04% Max 0.03% Max 0.01% Max

CUSTOM INJECTION QUILLS CAN BE MADE UPON REQUEST.

Contact us for custom made quills of any length.

Prices for the Continental 48 states of the USA only.

Fe Ni Cr C Cu Mo Mn Si Nb
Remander 31.0-44.0% 32.5 -35.0% 19.0 -21.0% 0.06% Max 3.0 -4.0% 2.0% -3.0% 2.0% Max 1.0% Max 1.0% Max
Fe Ni Cr C Cu Mo Mn Si Nb
Remander 31.0-44.0% 32.5 -35.0% 19.0 -21.0% 0.06% Max 3.0 -4.0% 2.0% -3.0% 2.0% Max 1.0% Max 1.0% Max
FEATURES - THIS IS A LOW VOLUME SELLER, contact_us FOR A CUSTOM QUOTATION.
