1 1/2 & 2 INCH; DIAPHRAGM HEAD PARTS
*Note: This product cannot be redeemed using rewards points.
FOR CURRENT DISCOUNTS, SEE TERMS OF SALE TAB (LEFT).
With few exceptions, you get free shipping on orders over $100.00, lower 48 States of the USA.
We accept Visa, MasterCard, American Express and Discover.
For PayPal Transactions we can email a Request for Funds.
Purchase Orders will be accepted for Domestic US Companies with an approved Credit Application.
A & F MACHINE PRODUCTS CO. 1 1/2" & 2" DIAPHRAGM HEAD PARTS
CONTACT US FOR A CUSTOM QUOTATION ON THESE PRODUCTS.
FREE UPS GOUND SHIPPING TO THE LOWER 48 STATES OF THE USA ON ALL ORDERS OVER $100.00.

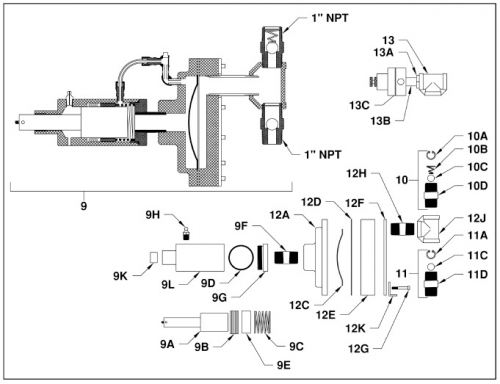

The 1 1/2" & 2" Diaphram Head Parts that you can buy from this page are:
| ITEM | PART # | DESCRIPTION |
|---|---|---|
| 9 | 0100-7 | 1 1/2" POLYETHYLENE PUMP HEAD ASSEMBLY W/CHECKS*** |
| 0100-8 | 2" POLYETHYLENE PUMP HEAD ASSEMBLY W/CHECKS*** | |
| 9A | 007-8 | 1 1/2" DIAMETER 303SS PISTON |
| 007-9 | 2" DIAMETER 303SS PISTON | |
| 9B | 012-8 | 1 1/2" PACKING SET (BUNA N) |
| 012-9 | 2" PACKING SET (BUNA N) | |
| 9C | 017-20 | 1 1/2" & 2" PACKING SPRING |
| 9D | 017-21 | 2 1/2" ID X 1/8" DIAMETER "O" RING SEAL |
| 9E | 018-1 | 1 1/2" PACKING SPACER |
| 018-2 | 2" PACKING SPACER | |
| 9F | 002-13 | 1" NPT X CLOSE BLACK NIPPLE |
| 9G | 003-20 | 1 1/2" & 2" CARBON STEEL END CAP |
| 9H | 006-1 | GREASE FITTING |
| 9K | 008-20 | 1 1/8" X 1" X 3/4" LONG OILITE BUSHING |
| 9L | 001-20 | 1 1/2" & 2" PUMP HEAD SHELL |
| 10* | 002-22P-D | POLYETHYLENE DISCHARGE CHECK VALVE ASSEMBLY |
| 002-19-D | 303SS DISCHARGE CHECK VALVE ASSEMBLY** | |
| 10A | 16-SS | SS SNAP RING BALL RETAINER |
| 10B | 002-27 | ANTI-SIPHON SPRING CONE SPRING ALLOY 276 |
| 10C | 007-20 | 3/4" DIAMETER CERAMIC BALL CHECK |
| 002-17 | 3/4" DIAMETER 316SS BALL CHECK | |
| 10D | 002-30 | POLYETHYLENE CHECK VALVE BODY |
| 002-18 | 303SS CHECK VALVE BODY | |
| 11* | 002-22P-S | POLYETHYLENE SUCTION CHECK VALVE ASSEMBLY |
| 002-19-S | 303SS SUCTION CHECK VALVE ASSEMBLY** | |
| 11A | 16-SS | SS SNAP RING BALL RETAINER |
| 11C | 007-20 | 3/4" DIAMETER CERAMIC BALL CHECK |
| 002-17 | 3/4" DIAMETER 316SS BALL CHECK | |
| 11D | 002-30 | POLYETHYLENE CHECK VALVE BODY |
| 002-18 | 303SS CHECK VALVE BODY | |
| 12A | 001-H20 | 1 1/2" & 2" HYDRAULIC HEAD CASTING |
| 12C | 030-2H | SCREEN |
| 12D | 026-2H | 1 1/2" & 2" HYDRAULIC HEAD TEFLON DIAPHRAGM |
| 12E | 025-H20 | 1 1/2" & 2" POLYETHYLENE HYDRAULIC HEAD (STANDARD) |
| 025-H20-S | 1 1/2" & 2" 303SS HYDRAULIC HEAD | |
| 12F | 029-H20 | POLYETHYLENE PUMP HEAD CLAMP PLATE |
| 12G | 027-H20 | HEAD BOLTS (12 REQUIRED) |
| 12H | 002-13-P | 1" NPT X SHORT PVC NIPPLE |
| 002-13-S | 1" NPT X SHORT 316SS NIPPLE | |
| 12J | 002-12-P | 1" NPT PVC TEE |
| 002-12-S | 1" 316SS TEE | |
| 12K | 031 | HEAD SUPPORT LEG |
| 13 | 002-12-P | 1" NPT PVC TEE |
| 13A | 1/2" NPT X 1" NPT PVC BUSHING | |
| 13B | 1/2" NPT X 1 1/2" PVC NIPPLE | |
| 13C | 36P | 1/2" NPT POLYETHYLENE PRESSURE RELIEF VALVE |
* RECOMMENDED SPARE PARTS
OPTIONAL MATERIALS
** 303SSADD $180 LIST
*** 316SSADD $360 LIST
*** C20ADD $600 LIST C20 IS ALLOY 20
Prices for the Continental 48 states of the USA only.
