A & F MACHINE PRODUCTS CO. 1" DIAPHRAGM HEAD PARTS
CONTACT US FOR A CUSTOM QUOTATION ON THESE PRODUCTS.
FREE UPS GOUND SHIPPING TO THE LOWER 48 STATES OF THE USA ON ALL ORDERS OVER $100.00.

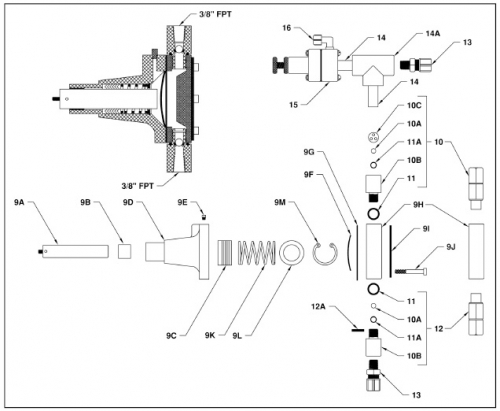

The 1" Diaphram Head Parts that you can buy from this page are:
| ITEM | PART # | DESCRIPTION |
|---|---|---|
| 9 | 0100-6 | 1" POLYETHYLENE PUMP HEAD ASSEMBLY W/CHECKS** |
| 9A | 007-7H | 1" DIAMETER 303SS HYDRAULIC PISTON |
| 9B | 008-20 | 1 1/8" X 1" X 3/4" LONG OILITE BUSHING |
| 9C | 012-7H | 1" HYDRAULIC PACKING SET (BUNA N) |
| 9D | 0011-H | 1" HYDRAULIC PUMP HEAD SHELL |
| 9E | 0006-2 | 1/8" PIPE PLUG |
| 9F | 030-H | 5/8" & 1" HYDRAULIC PUMP HEAD SCREEN |
| 9G* | 026-H-2 | 5/8" & 1" HYDRAULIC PUMP HEAD TEFLON DIAPHRAGM (STANDARD) |
| 026-H-1 | 5/8" & 1" HYDRAULIC PUMP HEAD VITON DIAPHRAGM | |
| 026-H-3 | 5/8" & 1" HYDRAULIC PUMP HEAD NEOPRENE DIAPHRAGM | |
| 9H | 025-H-1 | 5/8" & 1" POLYETHYLENE PUMP HEAD (STANDARD) |
| 025-H-2 | 5/8" & 1" 303SS HYDRAULIC PUMP HEAD | |
| 025-H-3 | 5/8" & 1" PVC HYDRAULIC PUMP HEAD | |
| 025-H-4 | 5/8" & 1" 316SS HYDRAULIC PUMP HEAD | |
| 025-H-5 | 5/8" & 1" ALLOY 20 HYDRAULIC PUMP HEAD | |
| 9I | 029-H | CLAMP PLATE FOR POLYETHYLENE & PVC HEADS |
| 9J | 027-H | HYDRAULIC PUMP HEAD BOLTS (6 REQUIRED) |
| 9K | 017-10 | 1" PACKING SPRING |
| 9L | 017-8 | 1" SS PACKING WASHER |
| 9M | 015 | SNAP RING |
| 10* | 002-DH | POLYETHYLENE DISCHARGE CHECK VALVE ASSEMBLY |
| 002-D | 303SS DISCHARGE CHECK VALVE ASSEMBLY | |
| 10A | 002-9 | 3/8" DIAMETER CERAMIC BALL CHECK |
| 10B | 002-1H | POLYETHYLENE CHECK VALVE BODY |
| 10C | 002-7H | BALL RETAINER DISC |
| 11 | 028-H | 3/4" X 1/8" CROSS SECTION VITON "O" RING SEAL |
| 11A | 028-S | VITON "O" RING SEAT |
| 12* | 002-SH | POLYETHYLENE SUCTION CHECK VALVE ASSEMBLY |
| 002-S | 303SS SUCTION CHECK VALVE ASSEMBLY | |
| 12A | 002-8H | BALL RETAINER PIN |
| 13 | 38-38 | 3/8" NPT X 3/8" OD TUBE FITTING |
| 14 | 050-P-38 | 3/8" NPT X 2" PVC NIPPLE |
| 14A | 050-P-16 | 3/8" NPT PVC TEE |
| 15 | 36P | 1/2" NPT POLYETHYLENE PRESSURE RELIEF VALVE |
| 16 | 38-38-90 | 3/8" NPT x 3/8" OD TUBE ELBOW FITTING |
* RECOMMENDED SPARE PARTS
OPTIONAL MATERIALS
** 303SSADD $180 LIST
316SSADD $360 LIST
C20ADD $600 LIST C20 IS ALLOY 20
Prices for the Continental 48 states of the USA only.
