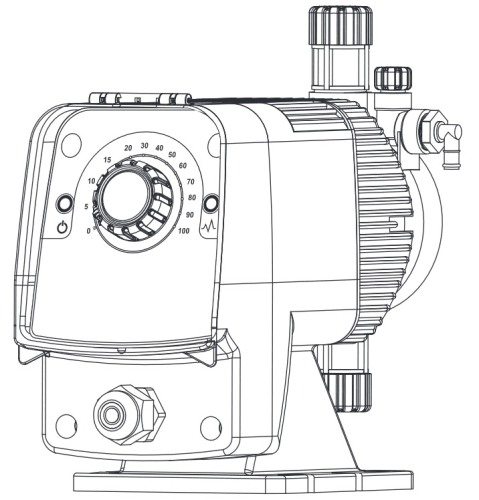

Advantage Controls Microlinx Series M Pumps

Key Features:
NEMA 4X Style Enclosure
Guided Double Ball Checks

Circuit Voltage Protection

Thermal Overload Protection

Priming / Degassing Valve

LED Indicating Lights

Splash Cover Over Controls

2 Year Warranty

Application:
MicroLinx Series M pumps provide a reliable, affordable product addition for a wide variety of applications. Precise metering is achieved with guided double ball checks, including foot and injection assemblies. Manual stroke speed of 0-200 strokes per minute provides a wide turn down capability of outputs up to 45 GPD and 300 PSI.

Build a Model
Model M_ _ _ _ - _ _ _ _

Build your model number by selecting one code

from each step. Example: M30X1-KFC1

Step 1.................. Output (Maximum)
05
= 5 GPD (18.9 LPD) at 300 PSI (20.6 bar)
12
= 12 GPD (45.4 LPD) at 250 PSI (17.2 bar)
15
= 15 GPD (56.7 LPD) at 150 PSI (10.3 bar)
30
= 30 GPD (113.5 LPD) at 100 PSI (6.8 bar)
45
= 45 GPD (170.3 LPD) at 75 PSI (5.1 bar)

Step 2.................... Control Options
X
= Speed Adjust
E
= Auto Stop

Step 3 ....................... Voltage
1
= 120 vac, USA plug and agency approvals
2
= 120-220 vac, no plug

Step 4 ... Head & Fittings, Seat & Ball
KFC
= Kynar, teflon, ceramic
KHC
= Kynar, hypalon, ceramic
KVC
= Kynar, viton, ceramic
DVC
= Kynar (degassing), viton, ceramic
SFSP
= Stainless, teflon, stainless, 1/4” MNPT*

Step 5 ........ Connections (PVDF only)
1
= 3/8” PE, 75-200 PSI (5.1-13.7 bar)
2
= ¼” PE, 250 PSI (17.2 bar)
P
= ¼” FNPT
U
= 3/8” Black UV tubing, 200 PSI (13.7 bar)
V
= 3/8” Tubing with clear suction, 200 PSI (13.7 bar)

Step 6 ........ Special Options
4
= Blue front
5
= Green front

* Note: S-head option only comes with teflon seat and SS ball, and does not include a foot or injection valve or any tubing.

PVDF models include everything for start-up: injection, foot and priming valve assemblies, plus suction, discharge, and prime tubing.

Specifications
Electrical

Input -
110 VAC or 240 VAC @ 50/60 Hz
Operational

Stroke length adjustment -
0-100% with a maximum of 200 strokes/min.
Enclosure

Heavy duty NEMA 4X style high impact
thermoplastic with clear lexan cover.
Environment

Max temperature 122
oF (50oC)
Relative humidity 0 to 85%

Shipping Weight:
Approx. 10 lbs. (4.536 kg)
