Solv-Ultima™ 250:  Auto-Change System

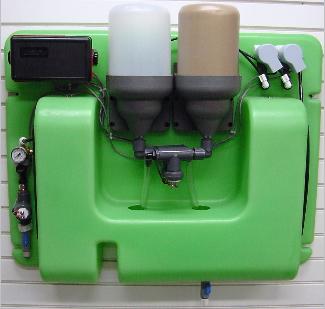

This automated mixing board is engineered for larger systems where a higher volume of available chemical is required or the interval between bottle-changing is less frequent.

If you need chemicals for this system, contact us.

To view or download PDF product bulletin, Click Here.

If you are in doubt regarding which dissolving system best meet your needs, Click Here to view or download our selection chart.

• Operation: The system continuously checks conductivity of the incoming make-up water and compares it to the conductivity of the solution leaving the dissolving bowl.   When the difference between the conductivity and the make-up water becomes zero, the system changes the spray to the other bowl.  A positive difference between the conductivities is created and the system runs off of this bowl.  This operation happens continuously – the system does not need to be shut down and reset, thus providing continuous, consistent water treatment chemicals to the system.  As the system does not need to be reset, an empty bottle can be changed at any time.
• Float Weights: When unit is activated, both solenoid valves open allowing water into the system, filling the reservoir with solution until the primary float is activated to turn off the primary valve.  When the reservoir level drops due to chemical pump draw, the primary float activates the primary valve allowing water to spray into the bottle of chemical in the mixing bowl.  Water erodes, dissolves, and mixes solid chemical concentrate which gravity-drains into the reservoir until the level builds and the primary float is activated.  When primary float is activated, the primary valve closes & water flow stops.


Electronic Controls & Sensors

• Electronic changeover controller
• Conductivity sensor (make-up)
• Conductivity sensor (chemical)
• Changeover water solenoids

Float Weights & Solenoids

• Float weight (2)
• Weight - Primary Float/Activate
• Solenoid- Primary Water
• Weight hook
• Weight connector (S-hook)
• Solenoid- Spill prevention
• Weight- Spill prevention


Water Connections & Functions

• Incoming water fitting w/valve
• Mesh Y-Strainer
• Vacuum Breaker (Anti-Siphon/Backflow)
• Pressure gauge
• Pressure Regulator
• Conductivity sensor (Make-Up water)
• Discharge to Chemical Pump (Suction-side)


Mixing Bowls

• Molded mixing bowls (2)
• Conductivity sensor (chemical)
• Discharge tubing to reservoir
• Spray deactivation tab
• Spray nozzle cover
• Product retention screen
