A & F MACHINE PRODUCTS CO. SHOT FEEDERS (SF) AND BY-PASS FEEDERS (BPF)

CONTACT US FOR A CUSTOM QUOTATION ON THESE PRODUCTS.

FEATURES:

  • 5 GALLON AND LARGER FEEDERS HAVE THREE 12" LEGS

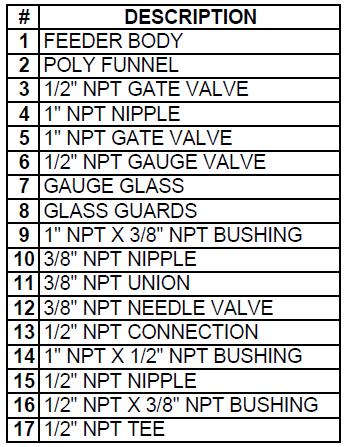

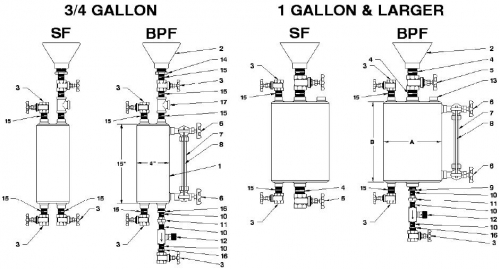

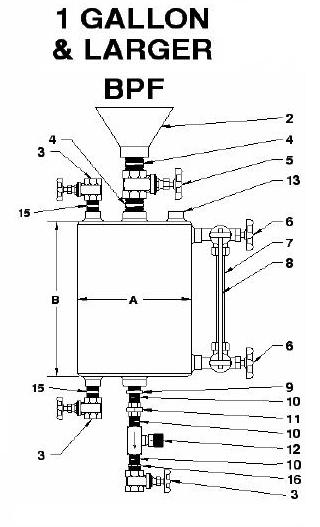

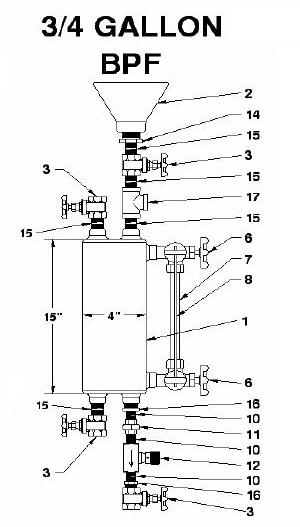

  • 125 PSI BY-PASS FEEDER INCLUDES (1) FEEDER BODY, (1) 1" GATE VALVE, (3) 1/2" GATE VALVES, (1) GAUGE GLASS ASSEMBLY, (1) POLY FUNNEL, (2) 1" NIPPLES, (3) 3/8" NIPPLES, (1) 1" X 3/8" BUSHING, (1) 3/8" UNION, (1) 3/8" NEEDLE VALVE, (2) 1/2" NIPPLES, (1) 1/2" X 3/8" BUSHING

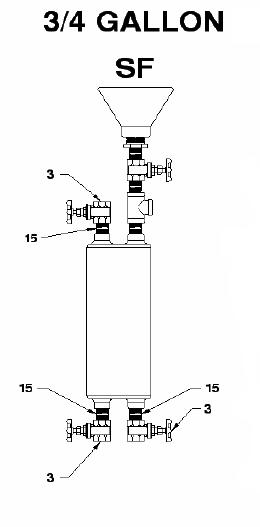

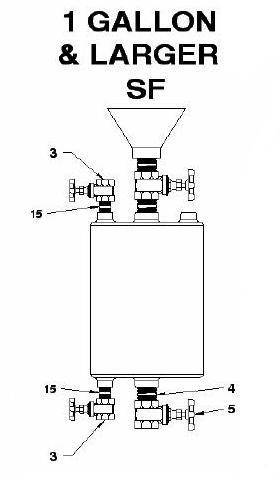

  • 300 PSI SHOT FEEDER INCLUDES (1) FEEDER BODY, (2) 1/2" BALL VALVES, (2) 1/2" NIPPLES, (2) 1" BALL VALVES, (3) 1" NIPPLES, (1) POLY FUNNEL

GENERAL INFORMATION

The SF and BPF Feeders are constructed from steel pipe with machine welded steel ends. The threaded connections are heavy steel half-couplings machine welded to the end plates of the feeder. SF and BPF feeders are furnished with brass valves and  schedule 40 steel nipples. The SF feeders with the HP option have 600 PSI steel ball valves and schedule 80 steel nipples. BPF feeders are only available with 125 PSI brass valves.

Prices for the Continental 48 states of the USA only.

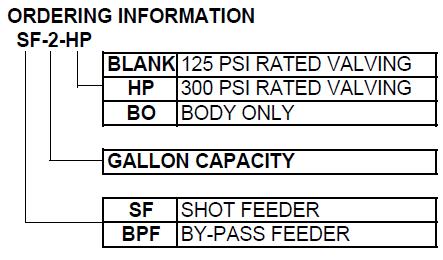

 Model Shot Feeders and By-Pass Feeders that you can build and buy from this page are:

  • SF-3/4
  • SF-1
  • SF-1 1/2
  • SF-2
  • SF-2 1/2
  • SF-5
  • SF-10
  • SF-18
  • SF-25
  • BPF-3/4
  • BPF-1
  • BPF-1 1/2
  • BPF-2
  • BPF-2 1/2
  • BPF-5
  • BPF-10
  • BPF-18
  • BPF-25
  • SF-3/4-BO
  • SF-1-BO
  • SF-1 1/2-BO
  • SF-2-BO
  • SF-2 1/2-BO
  • SF-5-BO
  • SF-10-BO
  • SF-18-BO
  • SF-25-BO
  • SF-3/4-HP
  • SF-1-HP
  • SF-1 1/2-HP
  • SF-2-HP
  • SF-2 1/2-HP
  • SF-5-HP
  • SF-10-HP
  • SF-18-HP
  • SF-25-HP
